Piezo 2x2x2mm

Piezo element
Piezo electric element with dimensions of 2x2x2 mm to easily oscillate (or fine position) a self-sensing cantilever (non-contact, tapping mode, etc.).

Piezo electric element with dimensions of 2x2x2 mm to easily oscillate (or fine position) a self-sensing cantilever (non-contact, tapping mode, etc.).

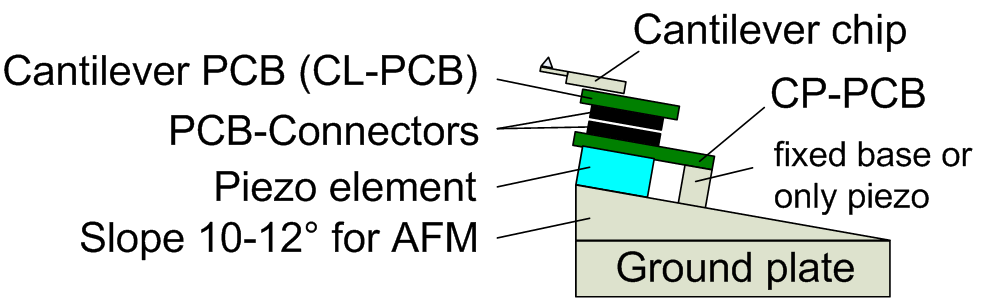

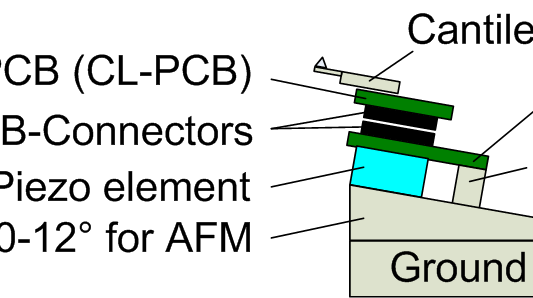

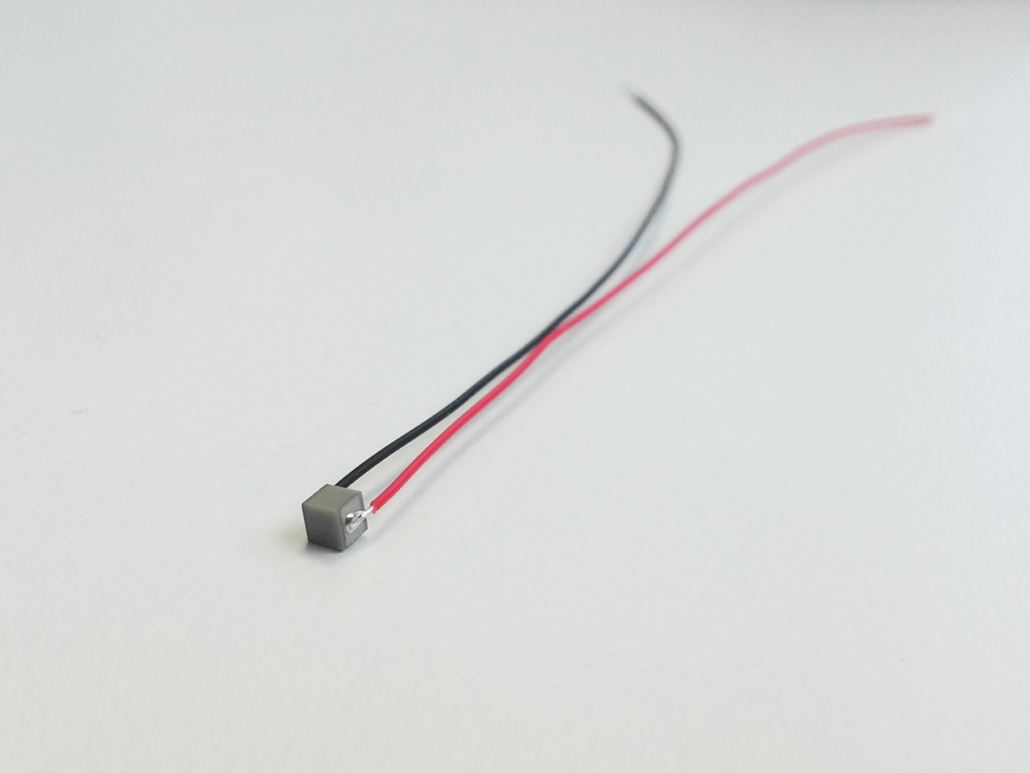

The piezo comes with two soldered Teflon (PTFE) flexible litz wires (length: 10 cm). The piezo exhibits a superior lifetime, sub-nm resolution and UHV compatibility.

Specifications
TypePL022.31 with stranded wires
ManufacturerPI ceramic GmbH

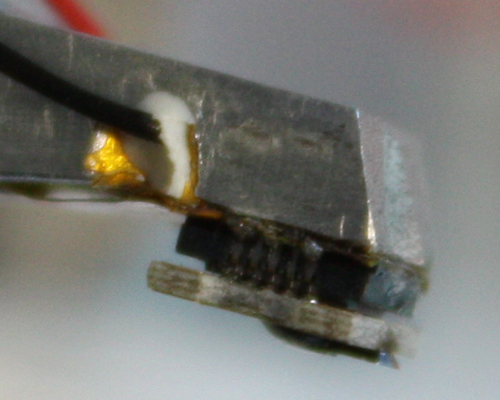

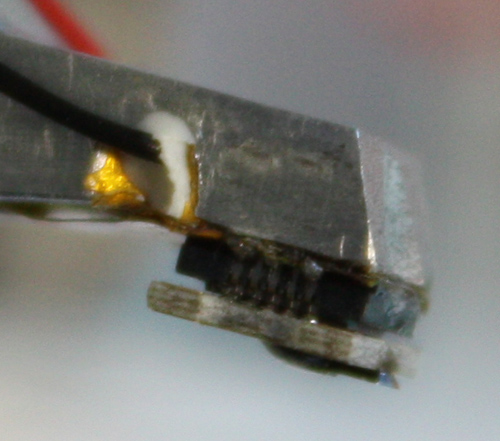

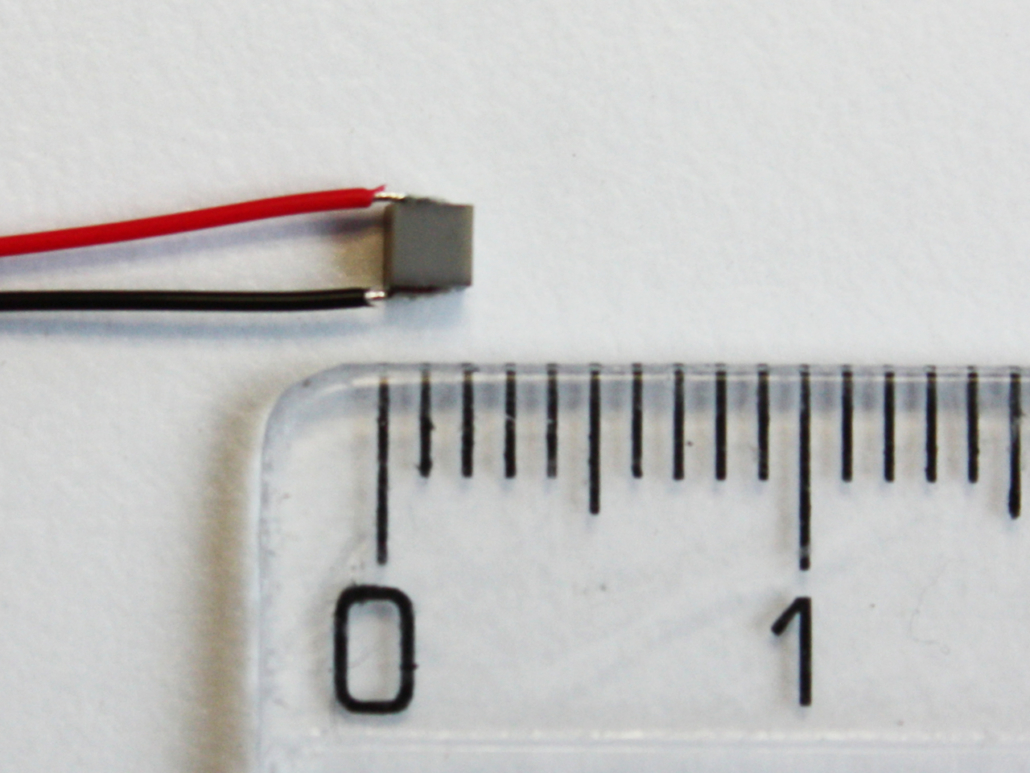

Dimensions2 x 2 x 2 +/-0.1 mm
Operating voltage-20...100 V
Travel range 0...100 V*2.2 µm +/-20 %
Blocking force at 0...100 V>120N
Axial resonant frequency>600 kHz
Electrical capacitan ce meas. @ 1 Vpp 1 kHz, RT25 nF +/-20%
Operating temperature range-40...150°C
UHV-compatible 2 1e-9, hPa / 1e-9 mBar, no outgassing
Wireslength = 10 cm, PTFE-insulated, AWG 32, D = 0.49 mm
