Counter-Part PCB soldered to FFC
CP-PCB w. FFC
Counter-Part printed circuit board soldered to a flat flex cable – The CP-PCB w. FFC connects a self-sensing cantilever to a SCL pre-amplifier or another device equipped with a FFC connector.
General Description

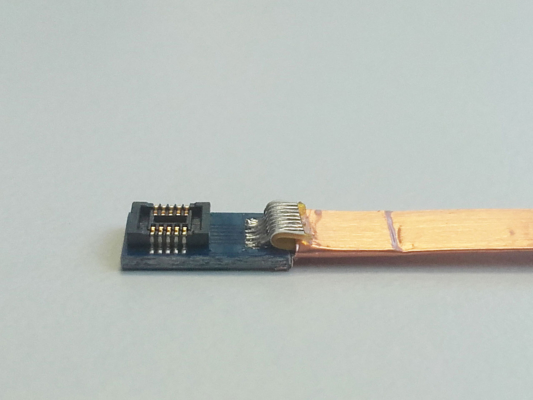

Counter-Part (CP) printed circuit board (PCB) soldered to a flat flex cable (FFC) – The CP-PCB w. FFC connects a self-sensing cantilever to a SCL pre-amplifier or another device equipped with a 8 pin and 0.5 mm pitch FFC connector.
The FFC itself is surrounded by a copper shielding tape.
Main Specification

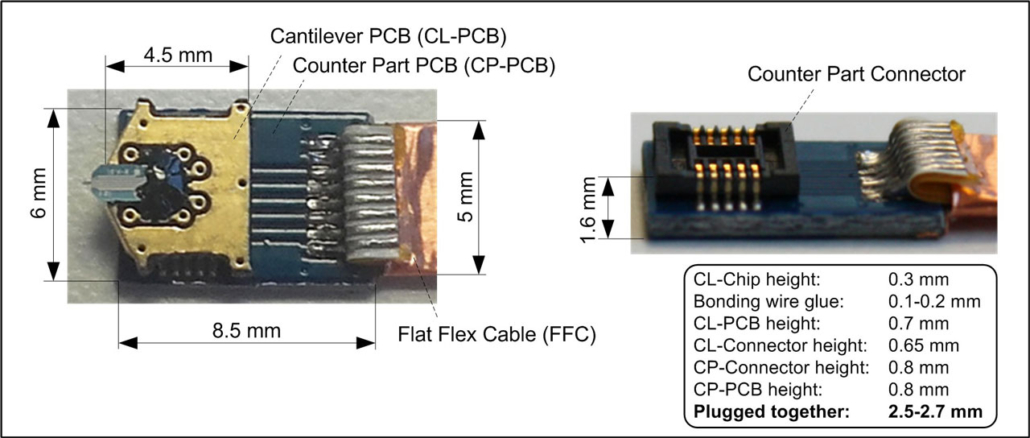

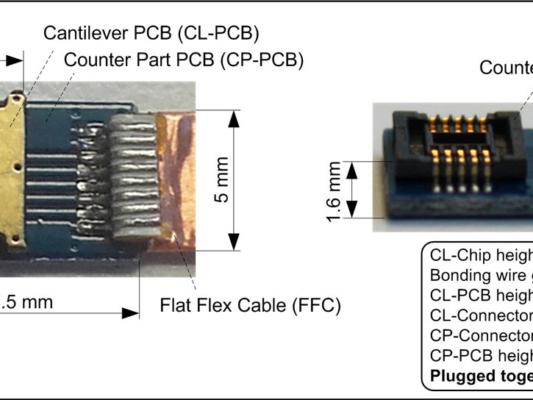

Dimensions |
|

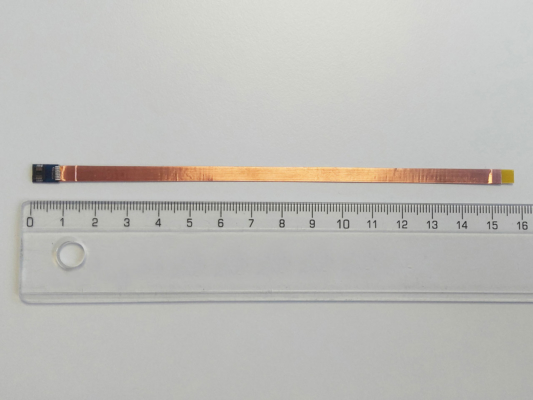

| total length (incl. CP-PCB) | 158 mm |
| CP-PCB (W x L) | 6 x 8 mm |
Electrical Specifications |
|
| max. current | Imax = 0.3 A |
| max. voltage | 50 VDC, 60 VAC |
| operational temperature | -40°C...+85°C |
Connectors and cables |
|
| Flat flex cable | FFC 8 pin, 0.5 mm pitch, -40°C.....+105°C, I = 0.5A, Vmax = 50VAC |
| CP-PCB connector | 10 pin, 0.4 mm pitch, -40°C....+85°C, Imax = 0.3A, Vmax = 50VDC |
| copper shielding | |
Downloads
PRS-L70-F900-Si-PCB/CHP Datasheet PDF – 572 kB
Order Information
- Delivery time
2 weeks - Minimum order
€ 400,- - Shipping charges
EU: Regular mail, worldwide, registered: 25 €
Worldwide: Regular mail, worldwide, registered: 35 € - Terms of payment
30 days net from the date of invoice
The delivered products stay in our property until complete payment.
Request a Quote
Please fill the form with your contact data and optional project information.
We will send you a quote as quick as possible.
In case of any questions, just contact us:
+43 1 8904345 14
