Flex Counter-Part PCB
Flex-CP-PCB
Our flex counter-part PCB enables you to connect a SCL self-sensing cantilever via a counter-part connector to a SCL pre-amplifier or any other customized device equipped with a FFC connector. The flex cable is very thin to perform a highly flexible connection.
General Description

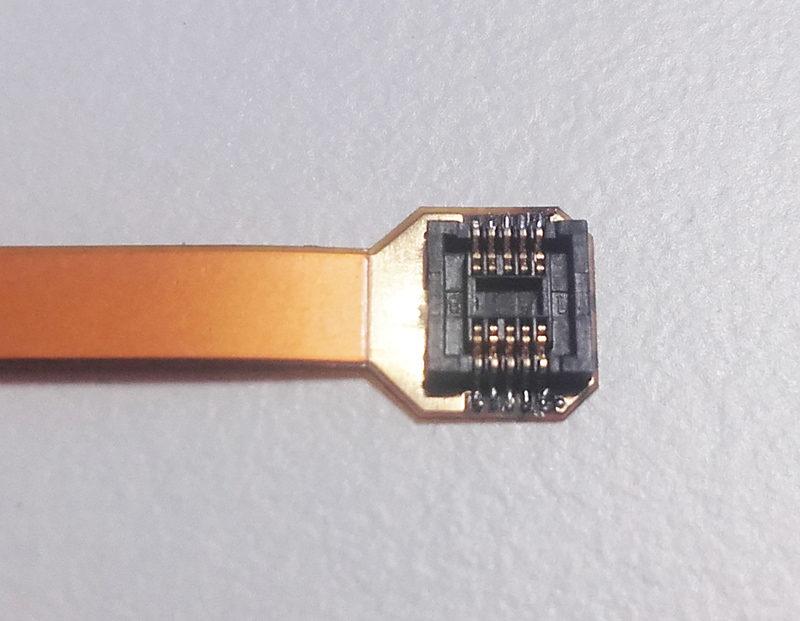

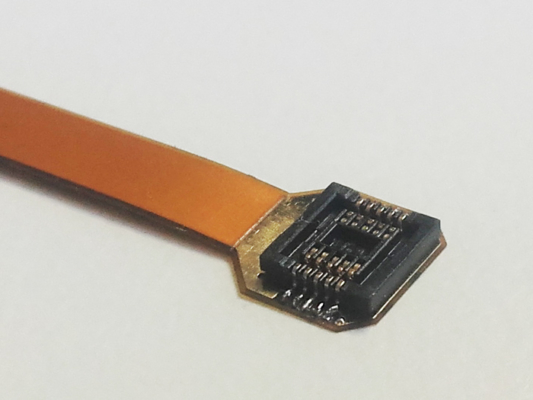

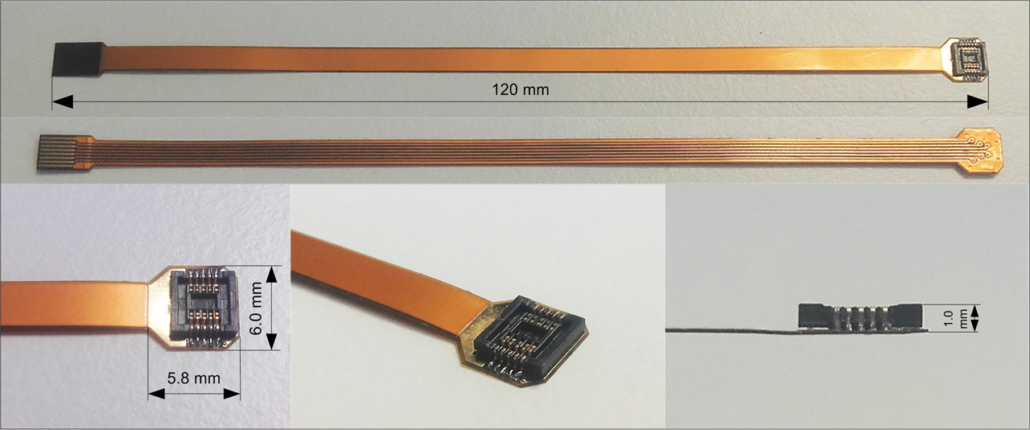

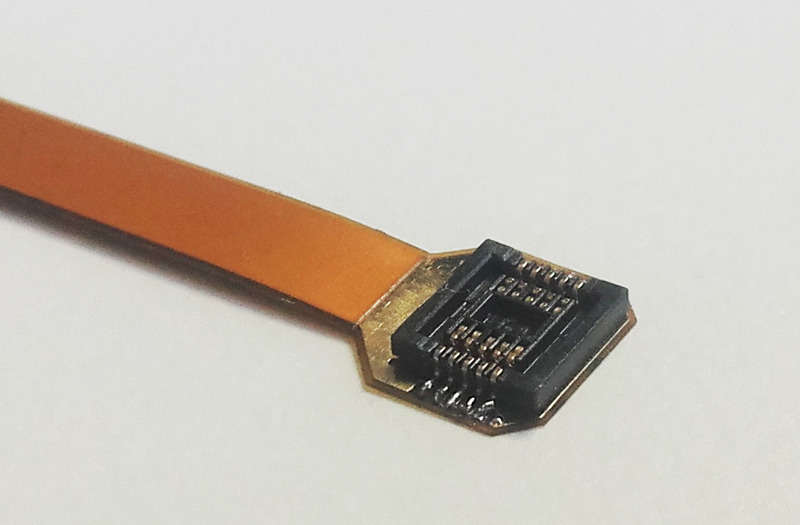

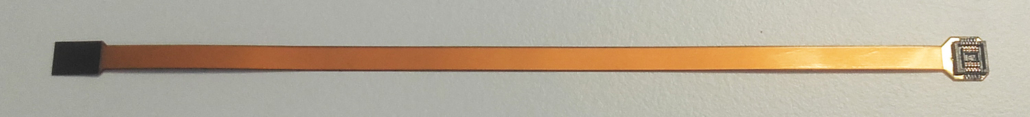

SCL’s flexible counter-part PCB (Flex-CP-PCB) enables you to connect a SCL self-sensing cantilever via a counter-part connector (10 pin female) to a SCL pre-amplifier or any other customized device equipped with a 8 pin and 0.5 mm pitch FFC/FPC connector.

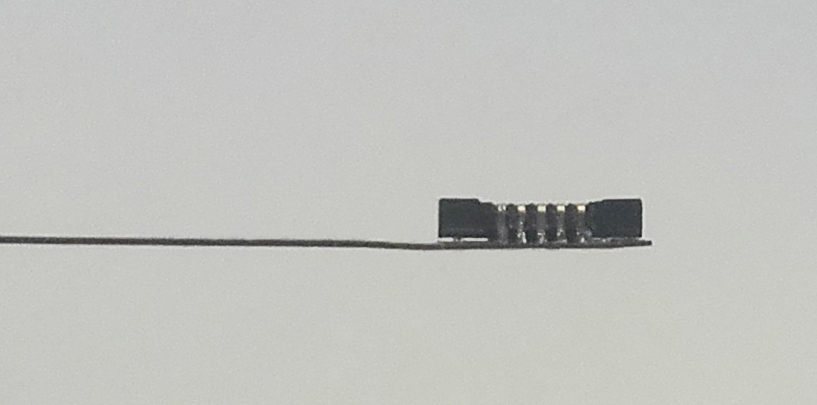

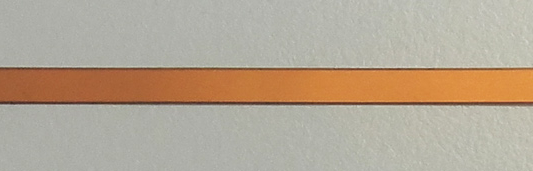

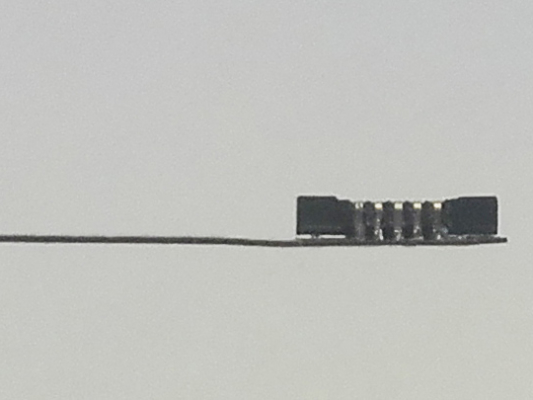

The 8-way flex cable is very thin (170 µm) to perform a high flexible and durable connection. A second layer with ground signal shields signal tracks from external noise.
Main Specification
table id==
Order Information
- Delivery time
2 weeks - Minimum order
€ 500,- - Shipping charges
EU: Regular mail, worldwide, registered: 25 €
Worldwide: Regular mail, worldwide, registered: 35 € - Terms of payment
30 days net from the date of invoice
The delivered products stay in our property until complete payment.
Request a Quote
Please fill the form with your contact data and optional project information.
We will send you a quote as quick as possible.
In case of any questions, just contact us:
+43 660 442 4871
