PRS 100×48 SCD Probes
Piezo-Resistive Sensing Probes
Piezo-resistive self-sensing silicon cantilever probe bonded to a 6×5 mm PCB with a 10 pin connector or non-bonded as silicon chip.

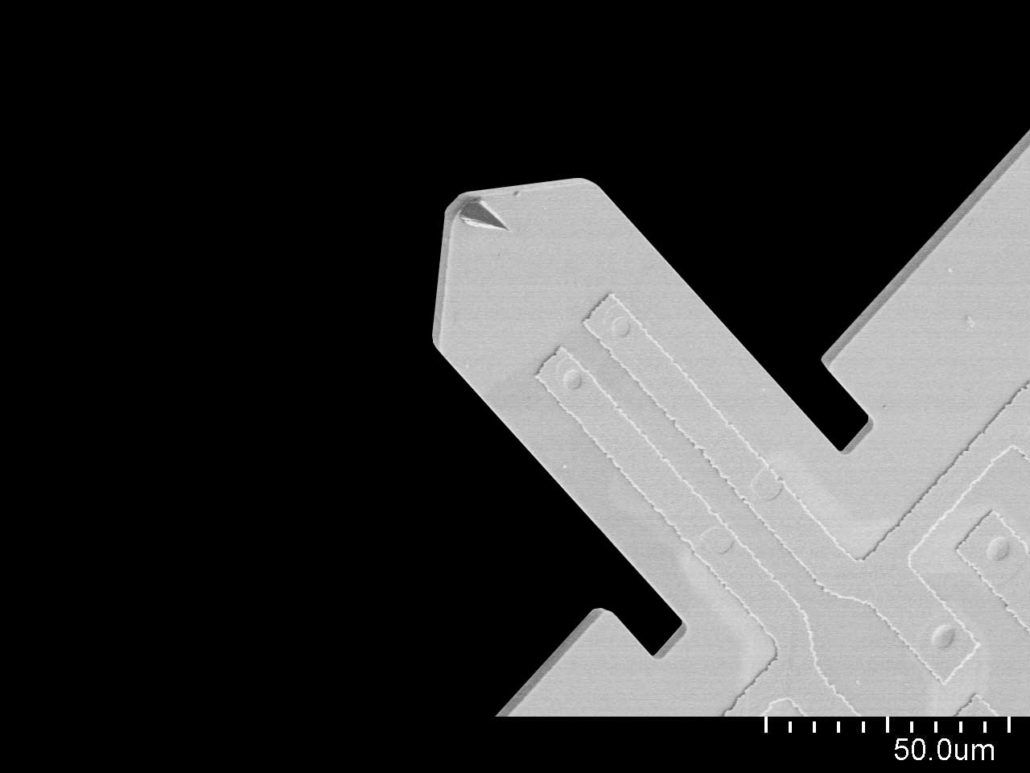

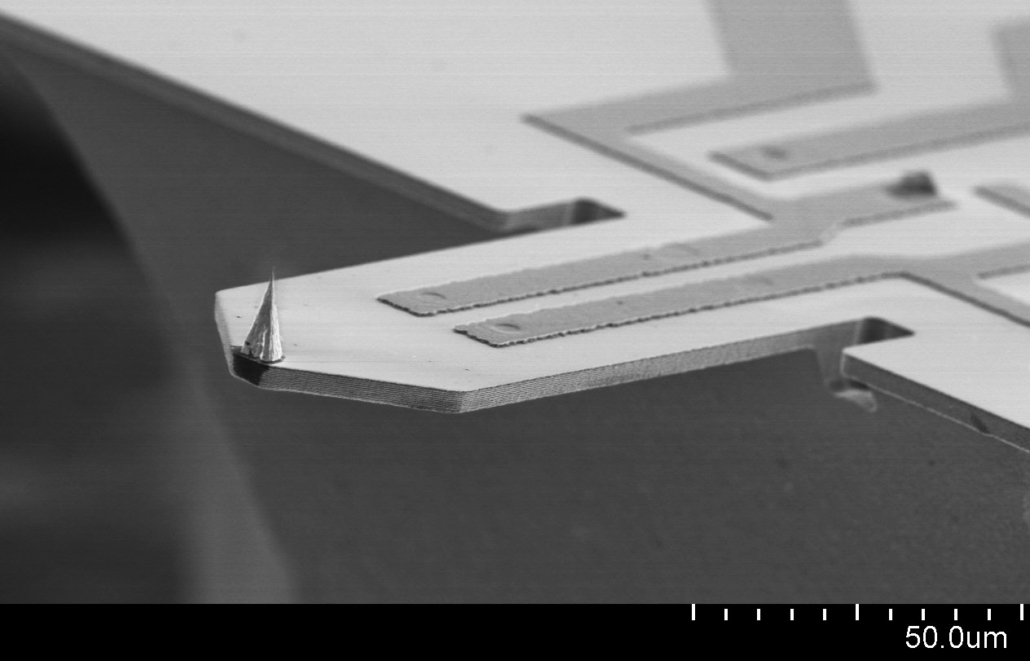

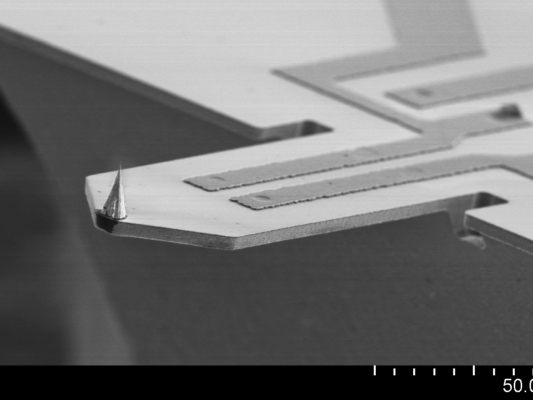

Piezo‐Resistive Sensing (PRS) probes are silicon cantilevers with a long‐life single crystal diamond tip (SCD). Integrated piezoresistors are used for self‐sensing the cantilever deflection. The piezo‐resistors are integrated into a matched Wheatstone bridge to raise the sensitivity and compensate environmental thermal drift.
Self‐sensing readout technology makes laser adjustment obsolete and saves time during a cantilever change. The free space above the cantilever enables new applications and combination of AFM with various instruments. The SCD tip exhibits low surface energy, which prevents contamination when imaging sticky or biological samples.
The cantilever chip is bonded to a small printed circuit board (PCB) with a small connector to enable a quick cantilever change. A counter part PCB for the cantilever PCB can be connected to a low‐noise preamplifier with a flat flex cable.

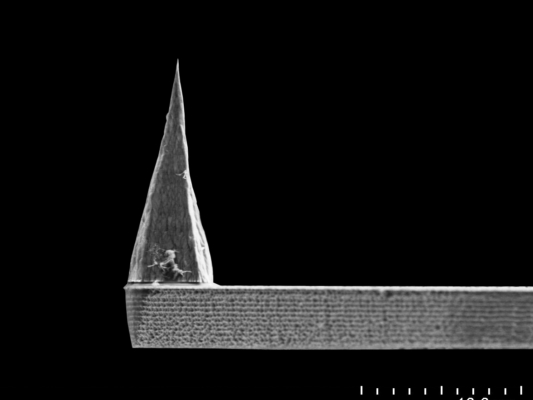

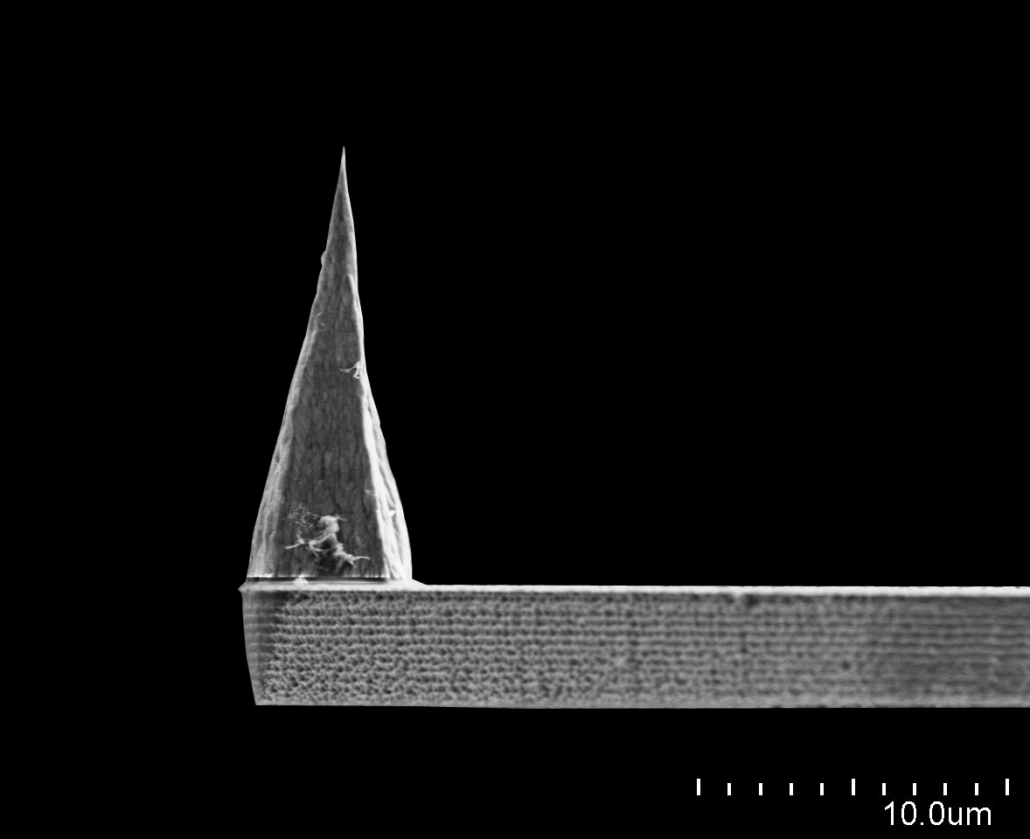

|Tip radius (apex) / height||<15 nm / 12…16 µm|
|Tip material||Long life Single Crystal Diamond (SCD) <100> along tip axis|
|Glue between tip and cantilever||non-conducting temp-stability: up to 70°C|
|Resonant frequency||250..550 kHz|
|Spring constant||14…170 N/m|
|AFM mode||contact, non-contact|
|Force sensitivity*||4…170 nN/µV|

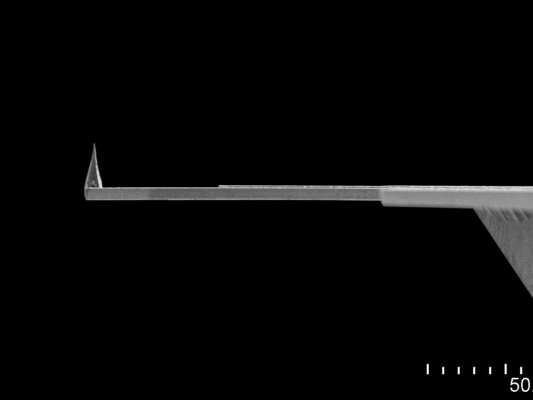

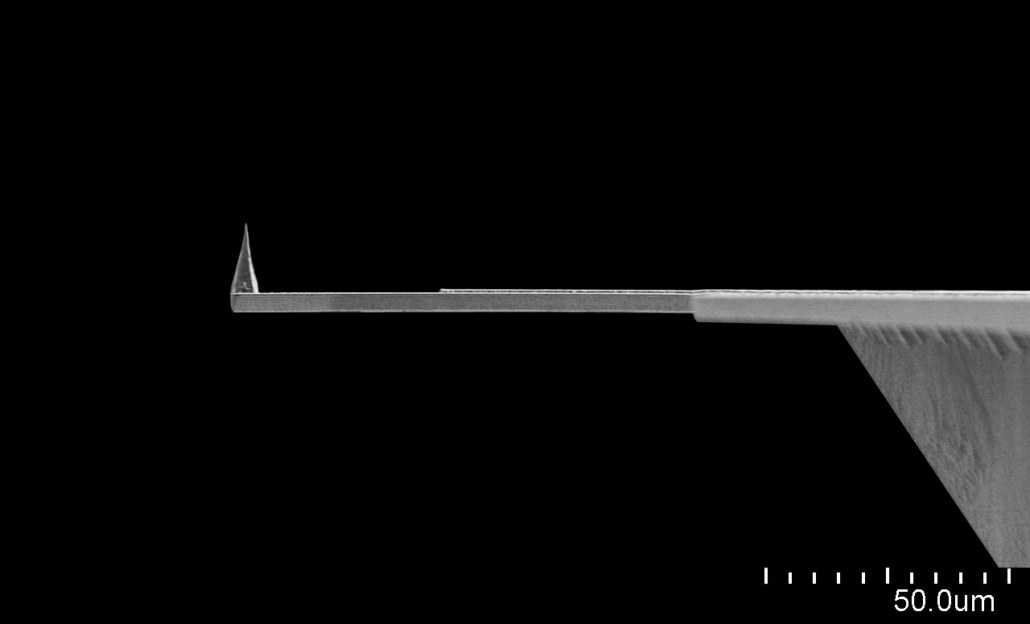

|Length, width||110 ±5 µm, 48 ±2 µm|
|Material||silicon cantilever, boron doped 1k Ohm piezo resistors, aluminium tracks|
|Deflection sensing||on chip piezo-resistive bridge|
|Electrical connections||bonded to small PCB with connector (counter part PCB available) or optional bonding pads on chip|
|Chip dimensions (h, w, l)||0.3 / 1.0 / 2.7 mm|
|* not amplified (signal direct at the chip), 2.048 V bridge supply|
PRS-L70-F900-Si-PCB/CHP Datasheet PDF – 572 kB
