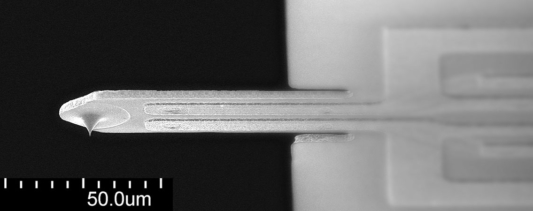

Self-Sensing Cantilever Probes
Silicon piezo-resistive self-sensing cantilevers enable complete new applications in the fields of Atomic Force Microscopy (AFM), nanoprobing, torque-magnetometry, or other sensing applications such as gas dynamics and media properties.
These cantilevers exhibit an integrated piezo-resistive Wheatstone bridge which directly measures the cantilever deflection electrically. This readout technique removes the space-consuming optical laser readout needed before.
Self-sensing technology enables an easy and seamless integration with various instruments (e.g. SEM, TEM, but also many other measurement systems). The cantilever chip is bonded onto a small PCB with a small connector for a quick cantilever exchange.
Standard SCL self-sensing cantilevers exhibit a tip with a tip radius smaller than 15 nm and are available with a variety of resonance frequencies and spring constants. Tipless and long-life SCD-tip cantilevers are available, too.

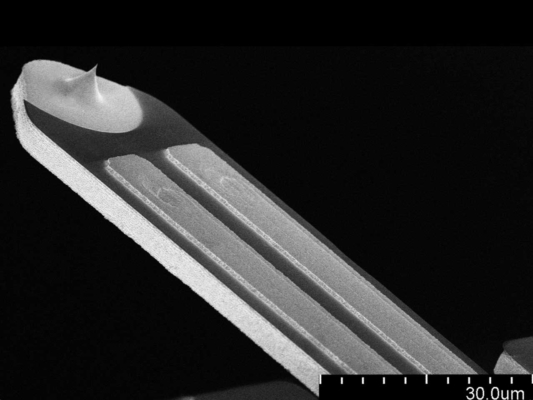

Self-Sensing Si-Tip Cantilevers
Standard self-sensing cantilevers with a sharp silicon tip for AFM microscopy, force sensing, etc. in contact or non-contact mode.

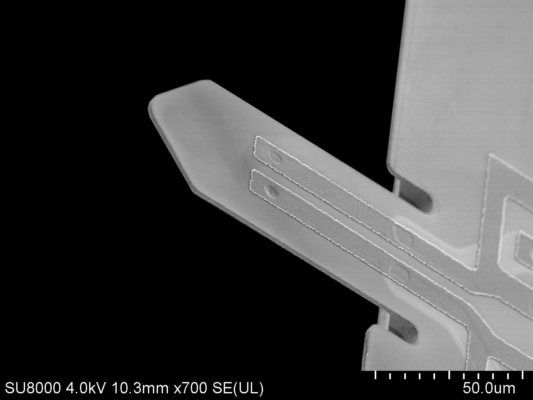

Self-Sensing Tipless Cantilevers
Self-sensing cantilevers without tip for various applications like highly sensitive gas detection, torque magnetometry, force sensing, etc.

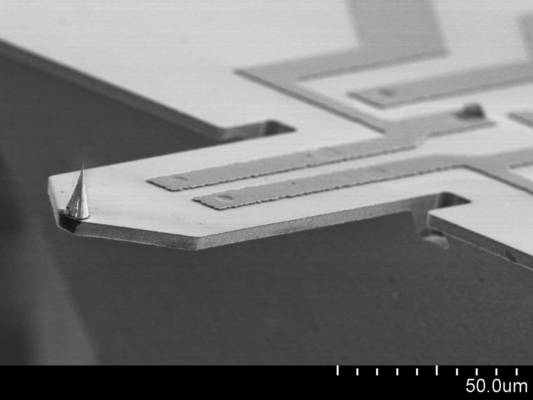

Self-Sensing SCD-Tip Cantilevers
Self-Sensing cantilevers with a hard and long-life single crystal diamond tip for AFM, high aspect ratio samples, etc.

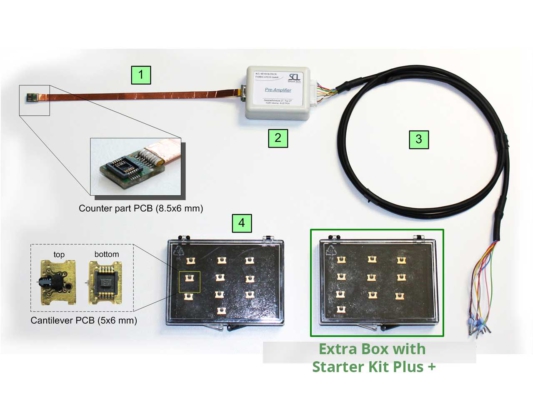

Complete kit to start with self-sensing cantilevers. Install this kit in your experimental setup or commercial instrument to increase their functionality with self-sensing power.

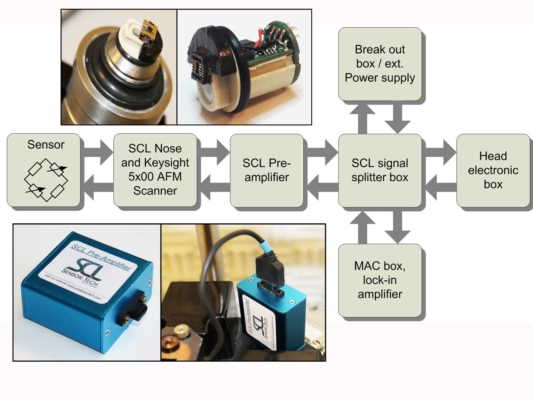

Add-On for Keysight AFMs
Add-on kit to integrate Self-sensing readout electronics and cantilevers to Keysight 5×00 AFMs. This laser-free new mode is time saving and opens new applications.

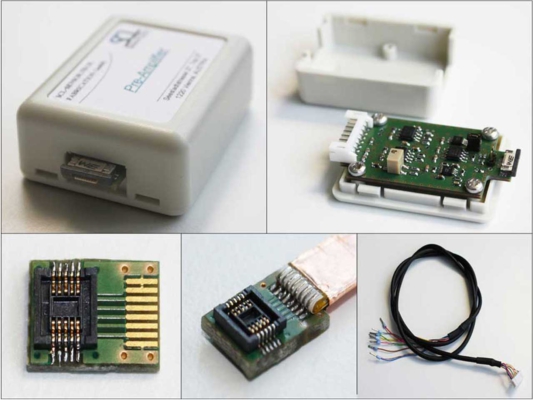

Electronics & Accessories
Electronics and accessory parts to connect self-sensing cantilevers and their readout sensing signals to data processing devices (e.g. AFM controller, Lock-in amplifier, etc.).
