Self-Sensing Cantilevers SCD-Tip

Self-Sensing Single Crystal Diamond Tip Cantilevers

This is a special type of SCL’s self-sensing cantilevers with a hard, long-life and sharp single crystal diamond tip (SCD). The cantilever is delivered on our cantilever PCB (CL-PCB) with a small 10 pin connector on its bottom side.

We offer this cantilever type with or without an integrated heater.

PRSA (Piezo-Resistive Sensing & Active) cantilever probes exhibit an additional thermal actuator (heater structure) on the cantilever. PRS (Piezo-Resistive Sensing) cantilever probes provide a sensing Wheatstone bridge (without a thermal actuator).

General order information for silicon tip cantilevers:
Delivery time 2 weeks | Minimum order € 500,-

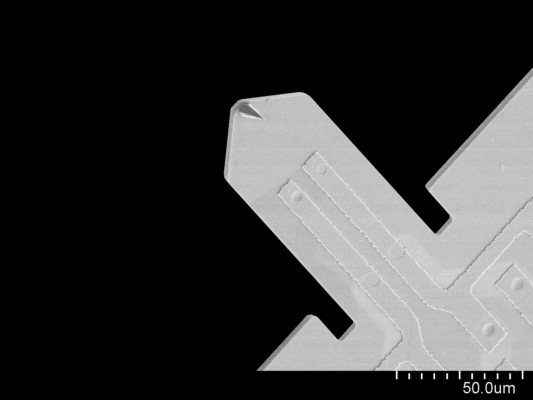

PRS 100×48µm SCD Probes

2017-10-10

Piezo-resistive self-sensing 100x48 µm cantilever probe with a SCD-tip bonded to a small PCB with a connector or non-bonded as silicon chip.

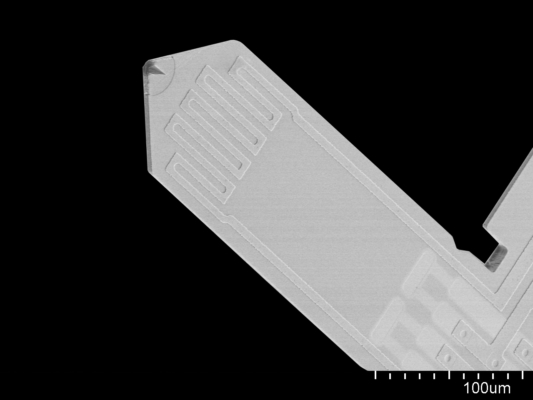

PRSA 300×100µm SCD Probes

2017-09-07

Piezo-resistive self-sensing 300x100 µm cantilever probe with a SCD-tip bonded to a small PCB with a connector or non-bonded as silicon chip.

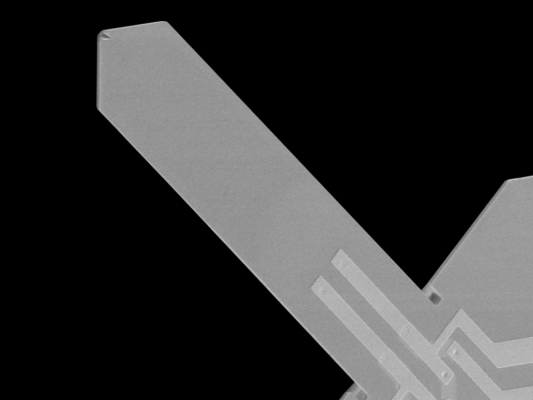

PRS 450×100µm SCD Probes

2017-09-07

Piezo-resistive self-sensing 450x100 µm cantilever probe with a SCD-tip bonded to a small PCB with a connector or non-bonded as silicon chip.

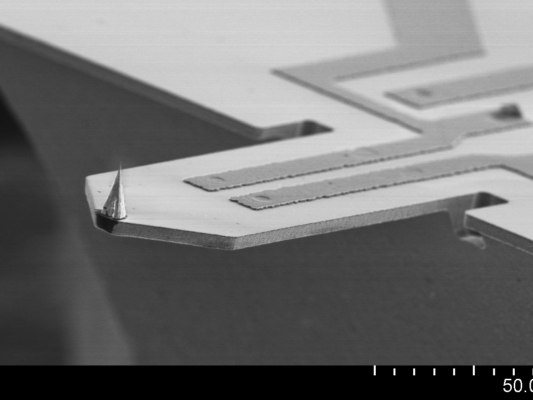

PRS 100×48µm SCD Probes

2017-09-07

Piezo-resistive self-sensing 100x48 µm cantilever probe with a SCD-tip bonded to a small PCB with a connector or non-bonded as silicon chip.
