PRS 70×30µm Si-Tip Probes
Piezo-Resistive Sensing Probes

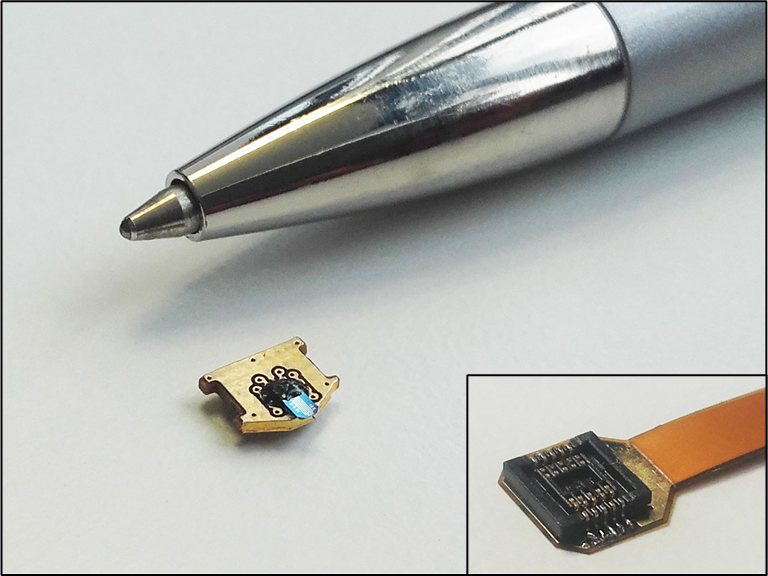

Piezo-resistive self-sensing silicon cantilever probe bonded to a 6×5 mm PCB with a 10 pin connector or non-bonded as silicon chip.
General Description

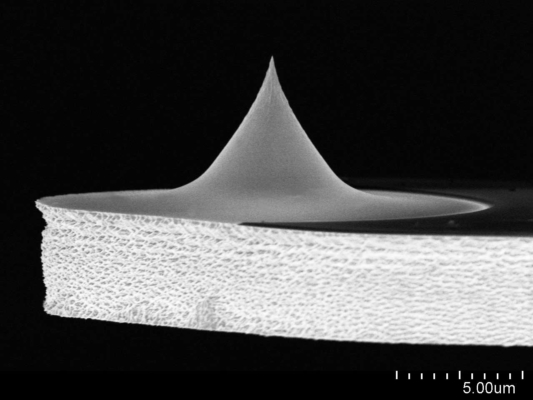

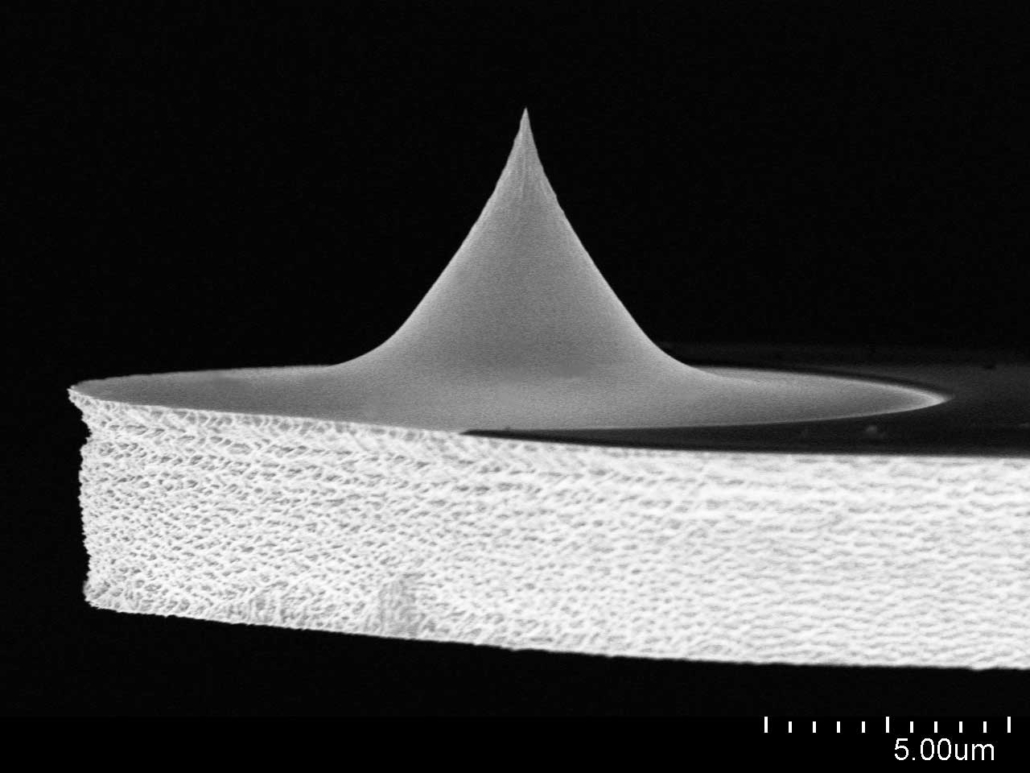

This is the standard type of SCL’s self-sensing cantilevers. It exhibits a sharp tip made of silicon with a tip radius of <15 nm.
By standard (STD) the cantilever is delivered on our cantilever PCB (CL-PCB) with a small 10 pin connector on its lower side. On request you can order also only the Si chip without PCB and connector for bonding on your own PCB holder.
We offer this cantilever type with or without an integrated heater. PRSA (Piezo-Resistive Sensing & Active) cantilever probes are equipped with an additional thermal actuator (heater structure) on the cantilever. PRS (Piezo-Resistive Sensing) cantilever probes provide the sensing Wheatstone bridge (without a thermal actuator).
Specifications
PRS-L70-F900-Si-PCB
| Silicon tip radius (rtip) | < 15 nm |

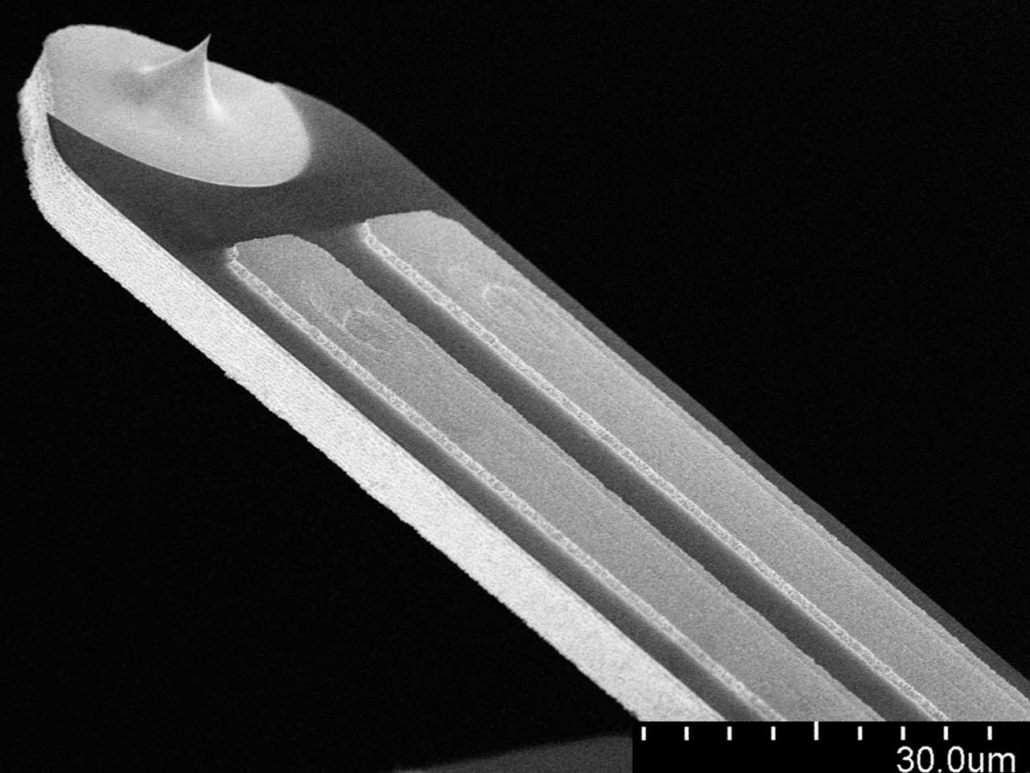

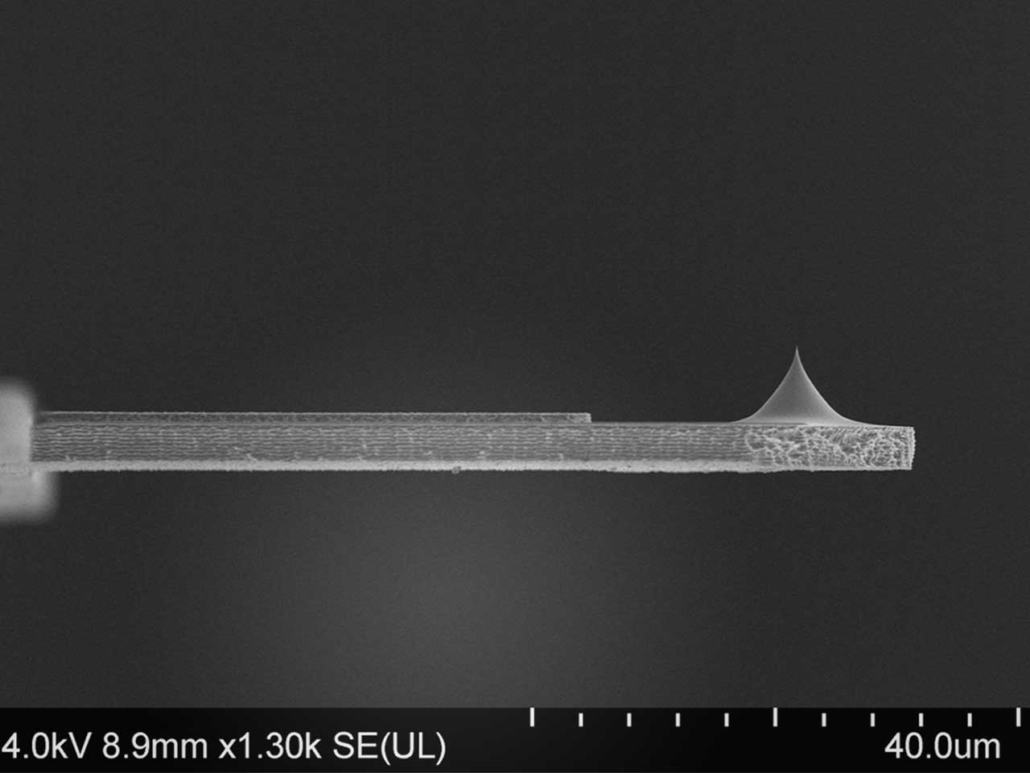

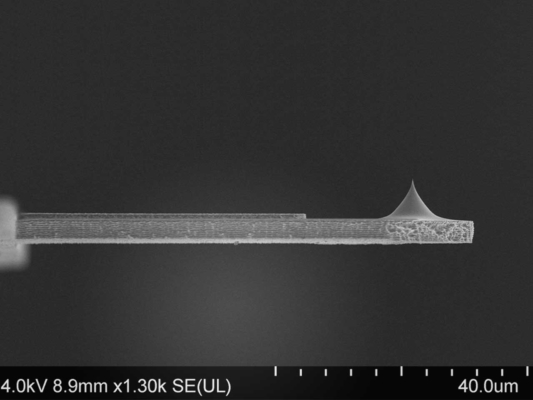

| Cantilever length, width (l/w) | l = 70…85 µm, w = 30 µm |
| Sensitivity (s) | 3 µV/nm |
| Resonant frequency (fR) | 500…1300 kHz |
| Stiffness (k) | 35…400 N/m |
Applications
- Integration on a standard AFM scanner and high‐speed AFM
- Force or deflection measurements within TEM, SEM, XPS, etc.
