Counter-Part PCB

CP-PCB

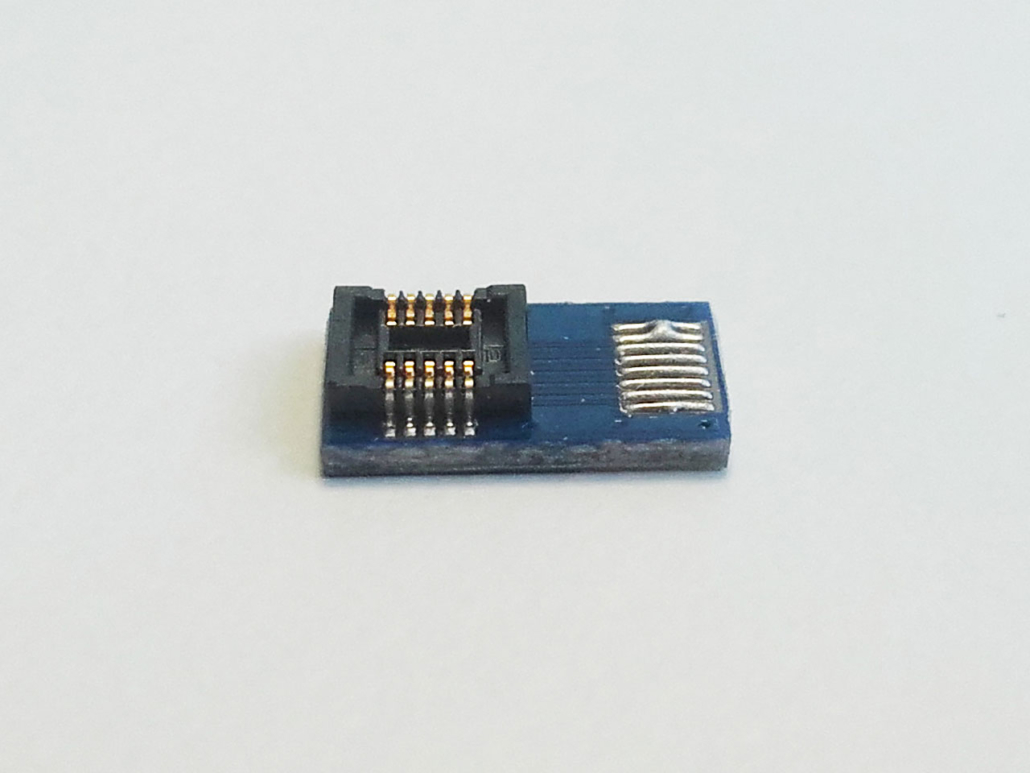

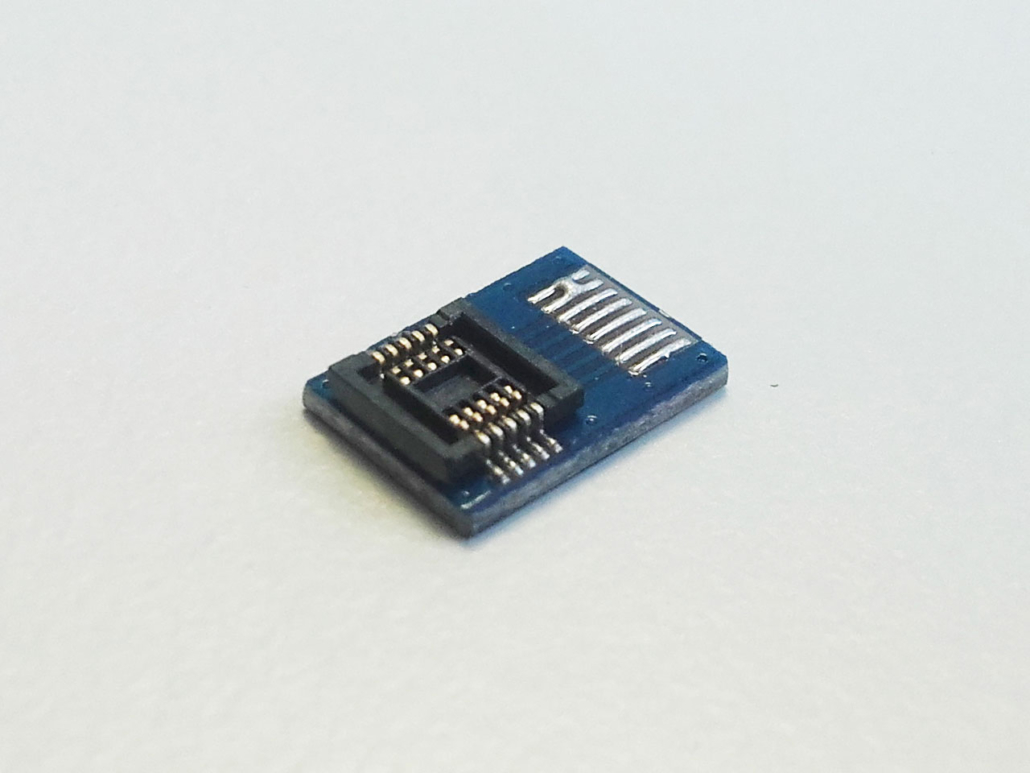

The counter-part PCB (CP-PCB) equipped with a small and low height connector is used to connect a self-sensing cantilever via a customized wiring to an arbitrary signal processing unit.

The counter-part PCB (CP-PCB) equipped with a small and low height connector is used to connect a self-sensing cantilever via a customized wiring to an arbitrary signal processing unit.

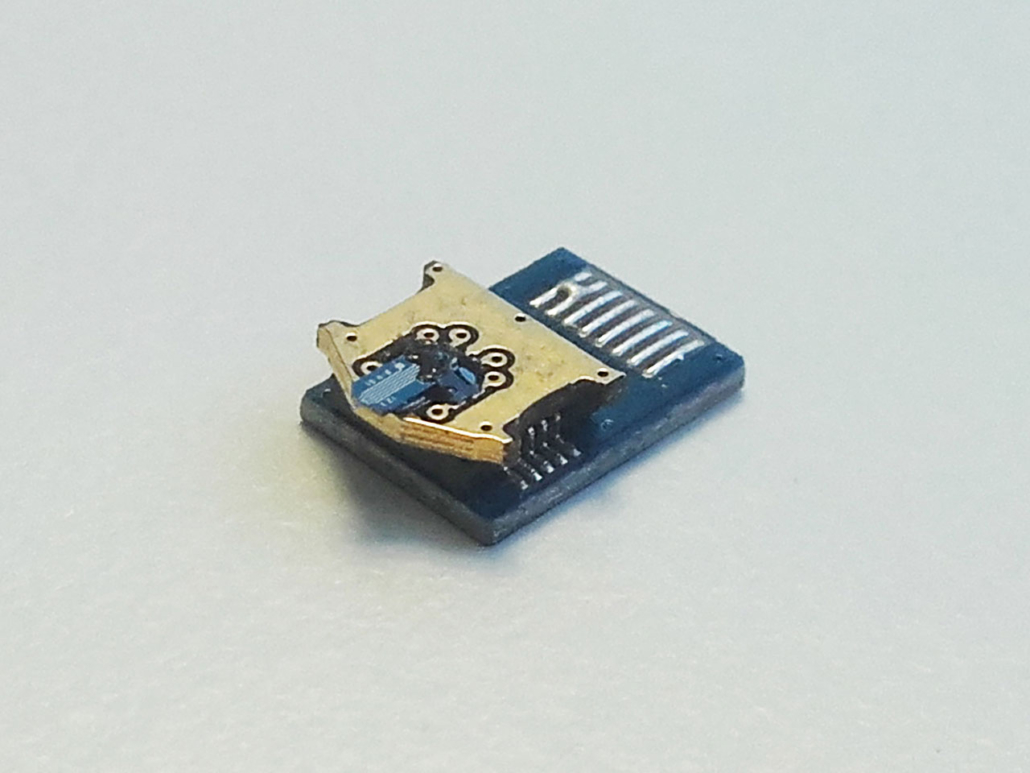

This helps SCL’s customers to realize highly flexible their own self-sensing cantilever projects. A cantilever PCB (CL-PCB) with a cantilever on the upper side and a connector on the lower side can be quick and easily connected to the 10 pin CP-PCB by using a metal tweezers.

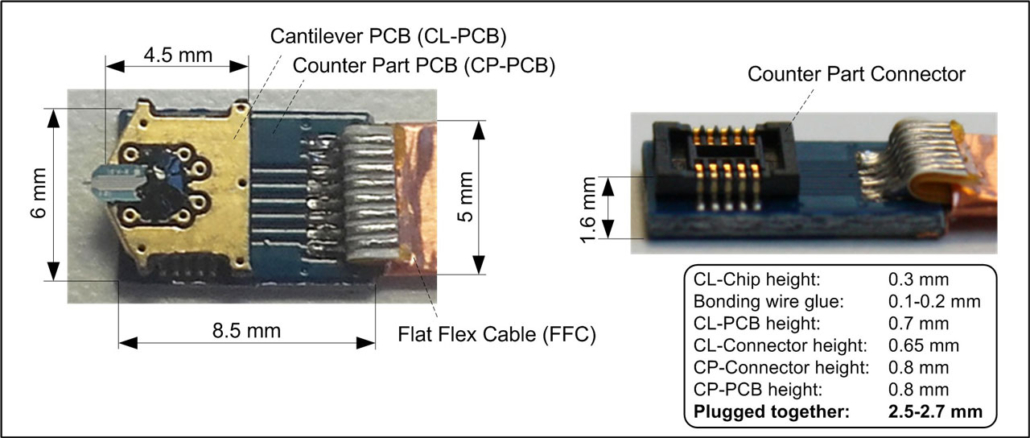

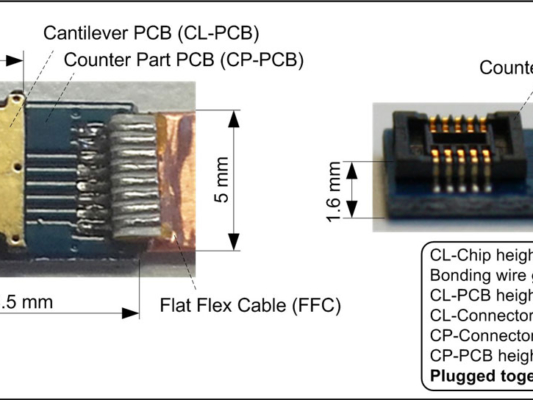

Dimensions

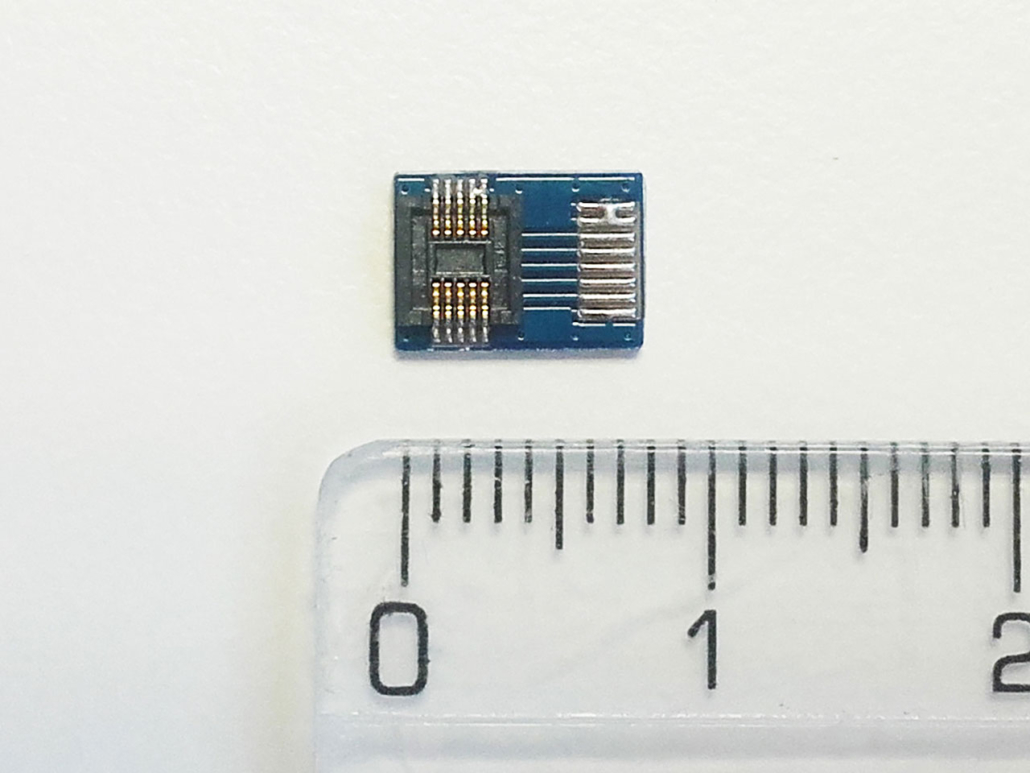

CP-PCB (W x L)6 x 8.5 mm
Electrical Specifications
max. currentImax = 0.3 ADC/AC
max. voltageVmax = 50VDC, 60VAC
operational temperature-40°C...+85°C
Connectors and cables
Flat flex cable10 pin, 0.4mm pitch, stacking 1.0 mm, contact material: copper alloy

PRS-L70-F900-Si-PCB/CHP Datasheet PDF – 572 kB

  • Delivery time
    2 weeks
  • Minimum order
    € 400,-
  • Shipping charges
    EU: Regular mail, worldwide, registered: 25 €
    Worldwide: Regular mail, worldwide, registered: 35 €
  • Terms of payment
    30 days net from the date of invoice
    The delivered products stay in our property until complete payment.
