Output Cable for Pre-Amplifier

Output cable
The Output cable Connects a SCL pre-amplifier to a signal processing device (e.g. lock-in or AFM controller).

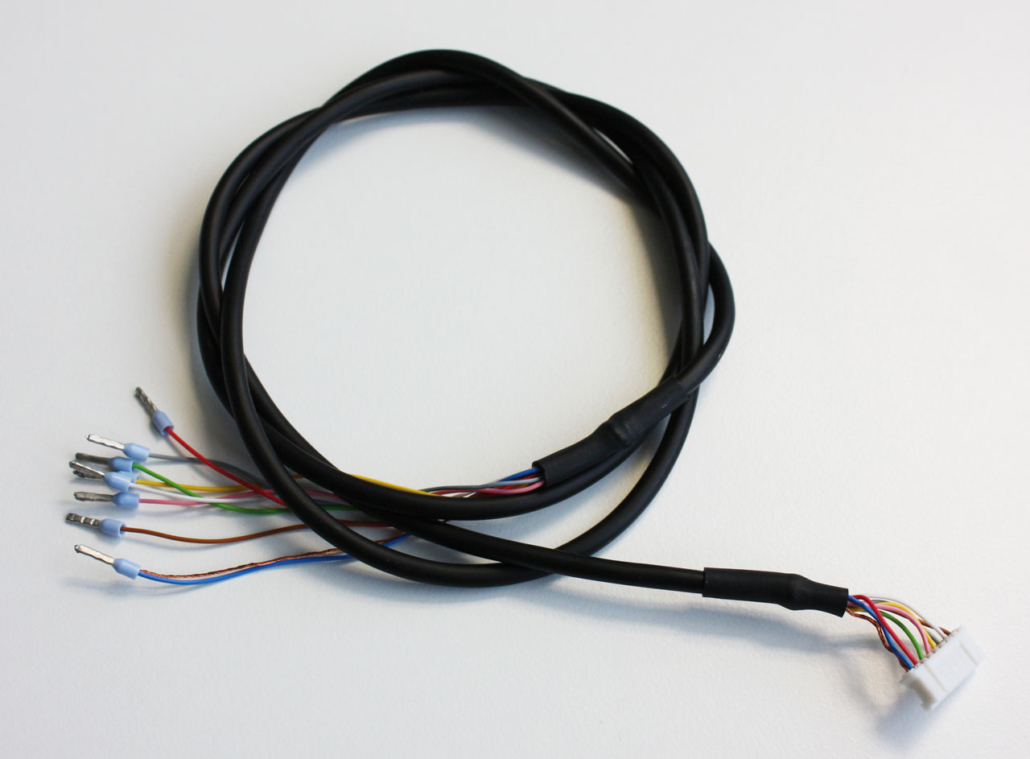

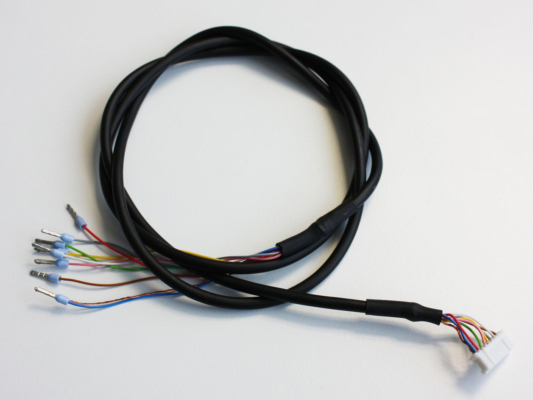

The output cable connects the SCL pre-amplifier to a signal processing device (e.g. lock-in or AFM controller). It exhibits 8 wires, a header connector and open ends with wire terminations.

Technical data -
cable
length1 m
diameter4.3 mm
wire + isolationPVC 105°C
wires8 x 0.08 mm2 copper
max. currentImax = 0.3 A
nominal voltageVnom = 300V
operational temperature (fix installed)-15 °C...+85 °C
shieldedyes
Connector

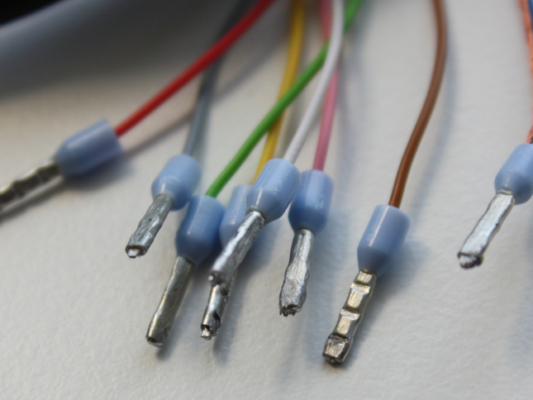

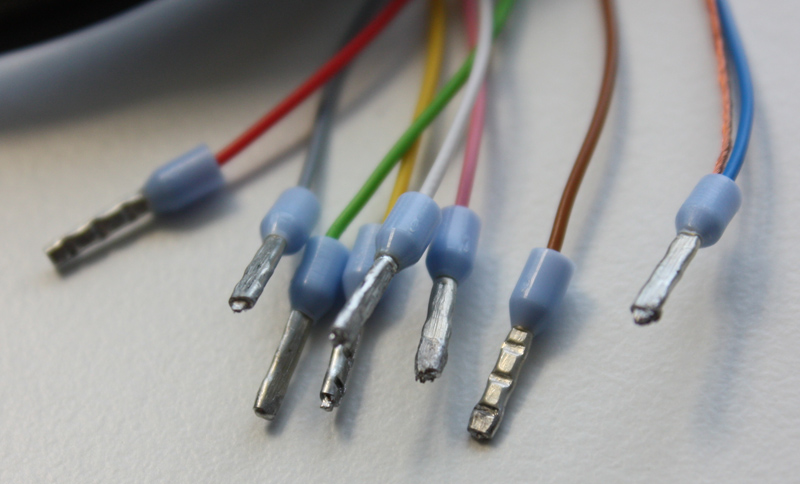

wire termination0.25 mm, copper, 0.3µm tin plated, nylon, max. temperature 105°C

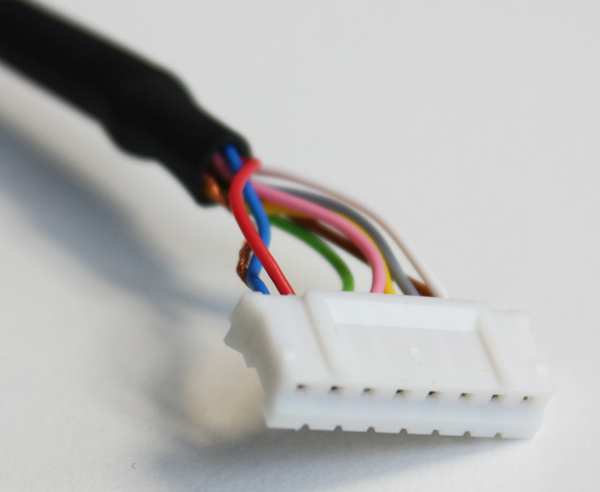

crimp style PCB connector2 mm pitch, w = 4.5 mm, h = 7.5 mm, Imax = 2ADC/AC, Vmax = 100VDC/AC, T = -25....+85°C, crimp contacts for 0.05...0.22 mm wires.

PRS-L70-F900-Si-PCB/CHP Datasheet PDF – 572 kB

  • Delivery time
    2 weeks
  • Minimum order
    € 500,-
  • Shipping charges
    EU: Regular mail, worldwide, registered: 25 €
    Worldwide: Regular mail, worldwide, registered: 35 €
  • Terms of payment
    30 days net from the date of invoice
    The delivered products stay in our property until complete payment.

Please fill the form with your contact data and optional project information.
We will send you a quote as quick as possible.
