PRSA 300×100µm Si-Tip Probes
Piezo-Resistive Sensing Probes
Piezo-resistive self-sensing silicon cantilever probe bonded to a 6×5 mm PCB with a 10 pin connector or non-bonded as silicon chip.
General Description

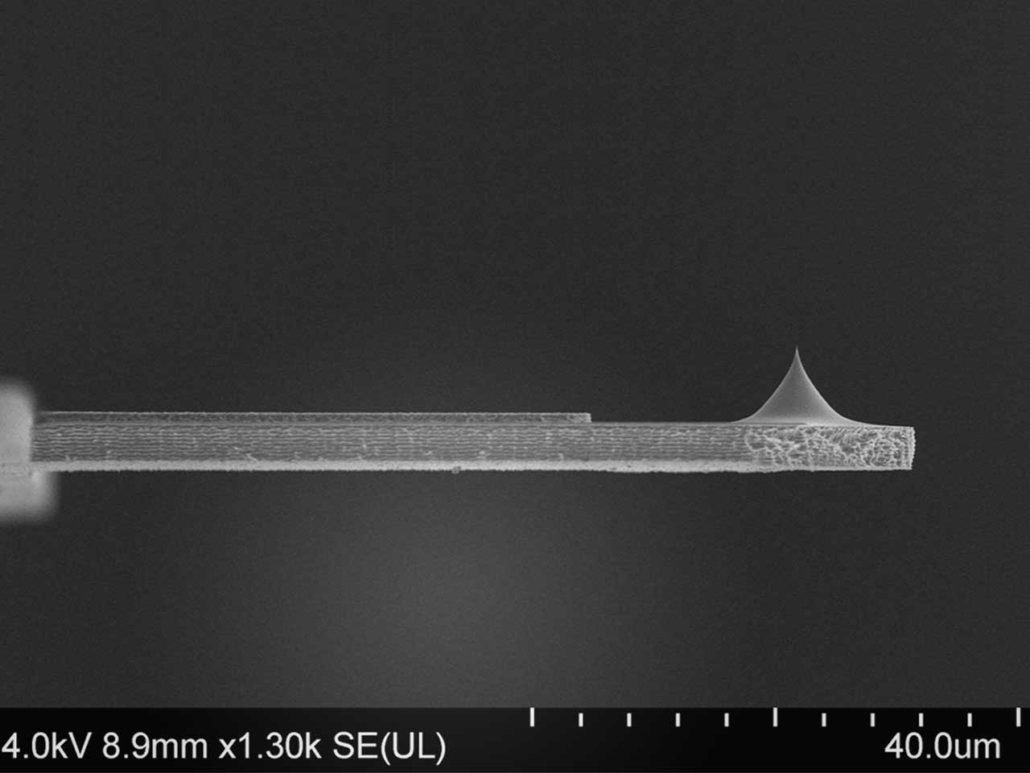

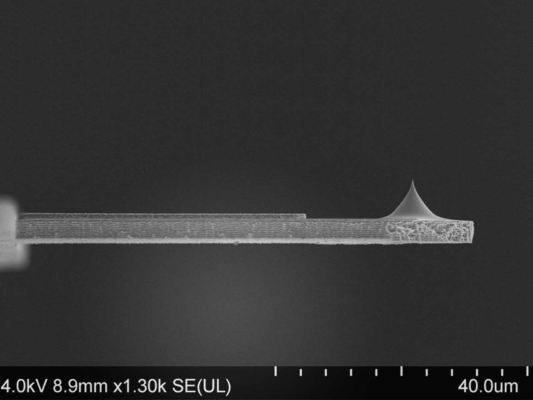

This is the standard type of SCL’s self-sensing cantilevers. It exhibits a sharp tip made of silicon with a tip radius of <15 nm.
By standard (STD) the cantilever is delivered on our cantilever PCB (CL-PCB) with a small 10 pin connector on its lower side. On request you can order also only the Si chip without PCB and connector for bonding on your own PCB holder.
We offer this cantilever type with or without an integrated heater. PRSA (Piezo-Resistive Sensing & Active) cantilever probes are equipped with an additional thermal actuator (heater structure) on the cantilever. PRS (Piezo-Resistive Sensing) cantilever probes provide the sensing Wheatstone bridge (without a thermal actuator).
This type is available in two specification ranges with a medium frequency of 50 kHz or 80 kHz depending on cantilever thickness.
Specifications
PRSA-L300-F50-Si-PCB
| Common (for both types) | |
| Silicon tip radius (rtip) | < 15 nm |
| Cantilever length, width (l/w) | l = 305 µm, w = 110 µm |
| Sensitivity (s) | 1-2 µV/nm |
| PRSA-L300-F50-Si-PCB | |
| Resonant frequency (fR) | fR = 30…65 kHz |
| Stiffness (k) | k = 1…15 N/m |
| PRSA-L300-F80-Si-PCB | |
| Resonant frequency (fR) | 65…95 kHz |
| Stiffness (k) | 15…56 N/m |
Applications
- Integration on a standard AFM scanner and high‐speed AFM
- Force or deflection measurements within TEM, SEM, XPS, etc.
Downloads
Order Information
- Delivery time
2 weeks - Minimum order
€ 500,- - Shipping charges
EU: Regular mail, worldwide, registered: 25 €
Worldwide: Regular mail, worldwide, registered: 35 € - Terms of payment
30 days net from the date of invoice
The delivered products stay in our property until complete payment.
Request a Quote
Please fill the form with your contact data and optional project information.
We will send you a quote as quick as possible.
In case of any questions, just contact us:
+43 660 442 4871
